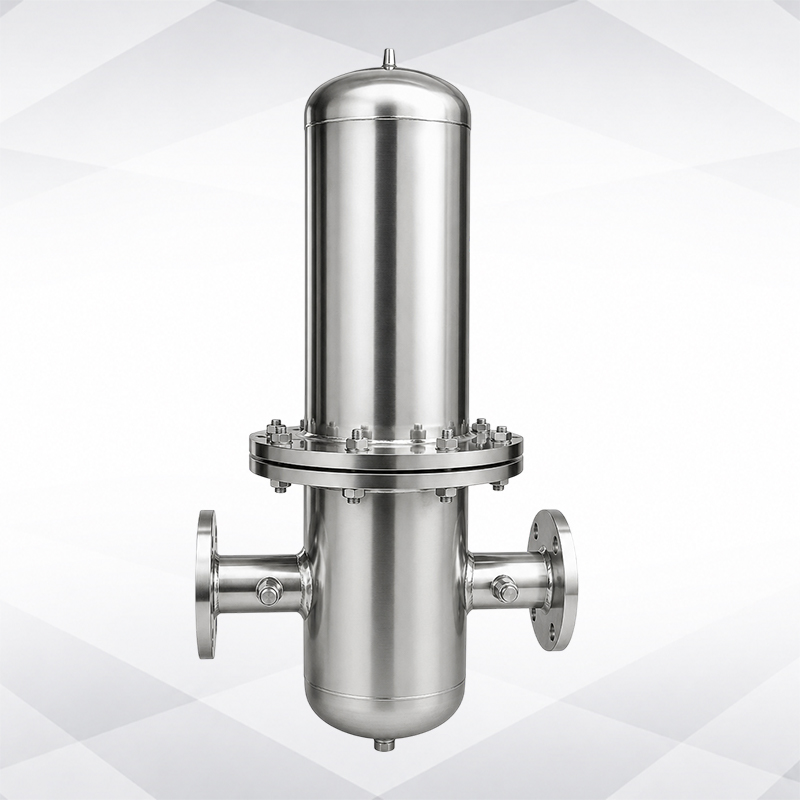

Steam Filter Housing
A Steam Filter Housing is a pressure-rated filter housing that holds steam filter cartridges to remove rust, pipe scale, moisture, dirt, and other contaminants from industrial steam lines, helping protect equipment and improve steam quality.
Steam Filter Housings are an important part of industrial steam filtration systems where clean, dry steam is required for efficient operation and high product quality. Aris Filtration manufactures and exports high-performance Steam Filter Housings designed to prevent high temperatures, pressure changes, and demanding industrial conditions. Our filter housings provide reliable filtration performance for a wide range of industrial applications.
What is a Steam Filter Housing?
A Steam Filter Housing is a stainless steel pressure vessel that contains a steam filter cartridge for removing solid contaminants and moisture from soaked or superheated steam lines.
Other standard liquid filter housings, steam filter housings are specifically designed to:
- Handle high operating temperatures
- Resist corrosion and thermal stress
- Maintain steam purity
- Minimize pressure drop
- Extend equipment life
Definition:
A Steam Filter Housing is a high-pressure filter housing designed for industrial steam systems. It securely holds steam filter cartridges to remove rust, pipe scale, moisture, and other impurities, ensuring clean steam, improved efficiency, and better equipment protection.
Why is Steam Filtration Important?
Industrial steam often contains contaminants caused by:
Industrial steam often contains contaminants caused by:
- Rust from pipelines
- Pipe scale
- Welding particles
- Corrosion deposits
- Moisture droplets
- Carbon particles
- Process contaminants
Without proper steam filtration, these impurities can:
- Damage valves
- Block nozzles
- Reduce heat transfer efficiency
- Contaminate products
- Increase maintenance costs
- Reduce equipment lifespan
Installing a Steam Filter Housing significantly improves overall plant safety.
Project Gallery
How Does a Steam Filter Housing Work?
The filtration process follows a simple sequence:
| Step | Process |
|---|---|
| 1 | Steam enters the housing inlet |
| 2 | Steam passes through the steam filter cartridge |
| 3 | Solid particles and contaminants are retained |
| 4 | Clean steam exits through the outlet |
| 5 | Condensate is removed through drain arrangements if required |
The housing protects the steam filter cartridge and safely contains high-pressure steam during operation.
What are the Features of Steam Filter Housing?
Our Steam Filter Housing is manufactured for demanding industrial environments.
Key Features
- Heavy-duty Stainless Steel construction
- High pressure resistance
- High temperature compatibility
- Corrosion-resistant finish
- Low pressure drop design
- Mirror or matte surface finish options
- Easy cartridge replacement
- Leak-proof sealing system
- Easy installation
- Long operational life
- Hygienic design for critical industries
- Available in customized sizes and structures
What Materials are used in Steam Filter Housing?
Material selection depends upon operating pressure, temperature and process fluid consistency.
Common Materials Include:
- SS304
- SS304L
- SS316
- SS316L
Optional Seal Components:
- PTFE seals
- Silicone gaskets
- Viton gaskets
- EPDM seals
The relevant material grade should always be selected according to steam quality, operating temperature, corrosion resistance requirements, and applicable industry standards.
Where are Steam Filter Housings Used?
Steam filtration is widely used across process industries where clean steam is critical.
Industries Served:
- Water Treatment Plants
- Oil & Gas
- Petrochemical Plants
- Refineries
- Mining Industry
- Pulp & Paper Industry
- Chemical Processing
- Textile Industry
- Dye & Intermediates
- Power Plants
- Edible Oil Processing
- Food Processing
- Bio-Pharma
- Pharmaceutical Manufacturing
- Paint Industry
- Ink Manufacturing
- Automobile Industry
- Aeronautics
- Fertilizer Plants
- Cement Industry
- Ceramic Industry
- Sugar Industry
- Defence & Marine Applications
What are the Benefits of Installing a Steam Filter Housing?
Using a properly designed Steam Filter Housing offers measurable operational advantages.
Key Benefits
- Improves steam quality
- Protects downstream equipment
- Prevents contamination
- Reduces maintenance frequency
- Increases equipment lifespan
- Improves production efficiency
- Supports process consistency
- Reduces operational downtime
- Lowers replacement costs
- Ensures reliable filtration under demanding conditions
Key Statement: A high-quality Steam Filter Housing protects both the steam system and the final manufacturing process by removing contaminants before they reach critical equipment.
What Technical Parameters Should You Consider?
Selection depends on multiple operating conditions. Final specifications should always match the application's pressure, temperature, flow rate, and filtration requirements.
| Parameter | Consideration |
|---|---|
| Housing Material | SS304 / SS316 / SS316L |
| Operating Pressure | As per application requirement |
| Operating Temperature | Steam service compatible |
| Connection Type | Flanged / Threaded / Tri-Clamp |
| Cartridge Length | Multiple options available |
| Surface Finish | Matte / Mirror Polish |
| Seal Material | PTFE / Viton / EPDM / Silicone |
Final specifications should always match the application's pressure, temperature, flow rate, and filtration requirements.
Why Choose Aris Filtration for Steam Filter Housing?
We are a Gujarat-based manufacturer and exporter of air, gas, liquid, and steam filtration solutions. We produce high-quality filtration products using ISO-based quality practices and designs that meet ASME, BS, and DIN standards for customers in India and worldwide.
Why Customers Choose Us?
- Customized engineering solutions
- Quality-focused manufacturing
- Strong stainless steel fabrication
- International standard designs
- Timely delivery
- Technical support
- Competitive pricing
- Export-ready products
- Wide industrial experience
- Reliable after-sales assistance
Whether your application involves pharmaceuticals, food processing, power generation, petrochemicals, or chemical manufacturing, our Steam Filter Housings are designed to deliver dependable performance in demanding operating environments.
Frequently Asked Questions (FAQs)
(1)What is the purpose of a Steam Filter Housing?
A Steam Filter Housing holds a steam filter cartridge that removes rust, pipe scale, condensate, and other contaminants from industrial steam systems.
(2)Which material is best for Steam Filter Housing?
SS316 and SS316L are commonly preferred for superior corrosion resistance, while SS304 is suitable for many standard industrial steam applications.
(3)Can Steam Filter Housings withstand high temperatures?
Yes. Steam Filter Housings are specifically engineered for high-temperature and high-pressure steam service.
(4)Which industries require Steam Filter Housing?
Industries including pharmaceuticals, food processing, refineries, chemicals, textiles, power plants, petrochemicals, sugar, cement, bio-pharma, water treatment, defence, and marine operations commonly use Steam Filter Housings.
(5)Does Aris Filtration provide customized Steam Filter Housings?
Yes. Aris Filtration manufactures customized Steam Filter Housings in various sizes, materials, pressure ratings, and connection types to suit specific industrial requirements.
