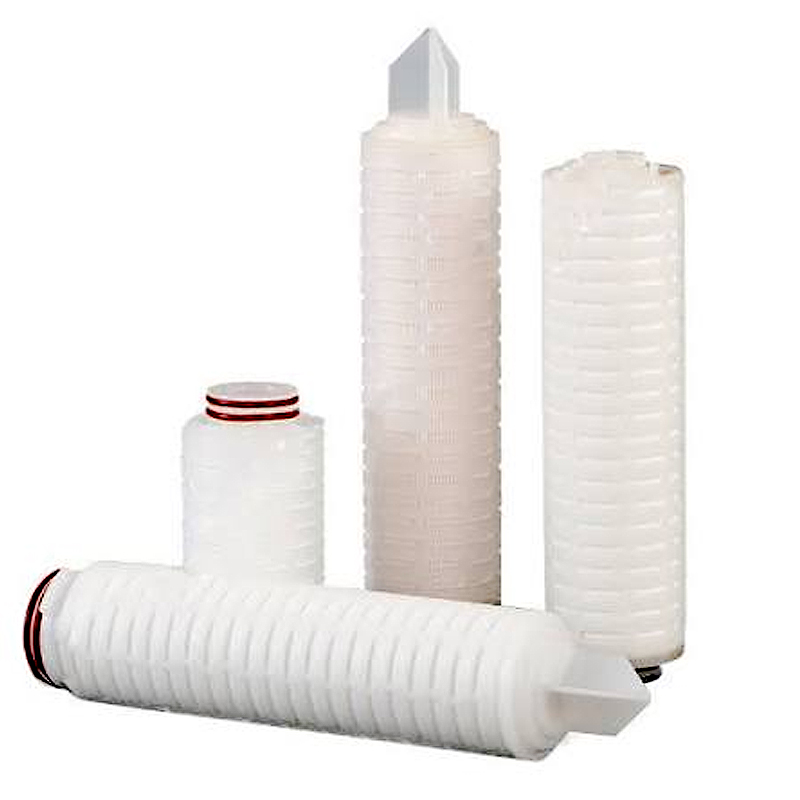

What is a Pleated Filter Cartridge?

A Pleated Filter Cartridge is a filter element that removes fine particles and contaminants from liquids and gases. It is made from materials such as PP, PTFE, PES, PVDF, Stainless Steel, and Glass Fiber. Its pleated design provides more filtration area, better performance, higher flow, and longer-lasting filtration than standard filter cartridges.

Definition:

A Pleated Filter Cartridge is a high-performance filter made with folded filter media for better filtration. It removes dirt, dust, and fine particles from liquids and gases while providing high flow, longer filter life, and low pressure drop. These cartridges are commonly used in water treatment, chemical processing, food and beverage, pharmaceutical, oil and gas, and other industrial filtration systems.

Why are Pleated Filter Cartridges Preferred for Industrial Filtration?

Industrial processes demand consistent filtration performance without frequent maintenance. Pleated filter cartridges are specifically designed to achieve high contaminant removal while maintaining ideal flow.

Key Benefits:

• Large effective filtration surface area
• High dirt-holding capacity
• Low pressure drop
• Excellent flow rate
• Longer service life
• High mechanical strength
• Wide micron rating availability
• Suitable with aggressive chemicals
• Easy installation and replacement
• Cost-effective filtration solution

Key Statement: A pleated filter cartridge provides significantly higher filtration area than standard depth cartridges, resulting in longer service life and improved filtration efficiency.

How Does a Pleated Filter Cartridge Work?

Pleated cartridges work by allowing liquid or gas to flow through specially made filter media. During the filtration process, dirt, dust, and other suspended contaminants are trapped on or inside the filter media, while the clean liquid or gas flows through the cartridge.

The pleated construction increases the available filtration surface without increasing cartridge size. This allows:

• Higher contaminant loading
• Better particle retention
• Reduced pressure loss
• Longer operating cycles

Depending on the filter media, cartridges can remove particles ranging from 0.2 micron to 100 micron or higher, depending on the application requirements.

Types of Pleated Filter Cartridges

Different industries require different filtration media. Aris Filtration offers a complete range of pleated filter cartridges to suit various industrial applications.

1. PP Pleated Filter Cartridge

A PP Pleated Filter Cartridge is manufactured using high-quality polypropylene media that offers excellent chemical compatibility and high dirt-holding capacity.

Features:

• Excellent chemical resistance
• High flow rate
• Low extractables
• FDA-compliant material options
• Available from 0.2 to 100 micron
• Suitable for food-grade and pharmaceutical processes.

Applications:

• Water Treatment
• RO Pre-filtration
• Food & Beverage
• Chemicals
• Pharmaceuticals
• Paints & Inks
• Process Water

2. SS Pleated Filter Cartridge

Stainless Steel Pleated Filter Cartridges are designed for high-temperature, high-pressure, and corrosive operating environments.

Features:

• Reusable and washable
• High mechanical strength
• Excellent corrosion resistance
• Suitable for steam sterilization
• Long operational life

Applications:

• Petrochemical Plants
• Oil & Gas
• Power Plants
• Refineries
• Cement Industry
• Mining
• Hydraulic Systems

3. PTFE Pleated Filter Cartridge

PTFE cartridges are manufactured using hydrophobic PTFE membrane media, making them ideal for aggressive chemicals and sterile gas filtration.

Features:

• Hydrophobic membrane
• Excellent chemical compatibility
• High bacterial retention
• Low protein binding
• Higher oxidation resistance

Applications:

• Bio-Pharma
• Electronics
• Chemicals
• Solvents
• Sterile Air
• Compressed Gas Filtration

4. PES Pleated Filter Cartridge

PES (Polyethersulfone) Pleated Filter Cartridges are hydrophilic membrane filters designed for high-purity liquid filtration.

Features:

• High flow rate
• Low protein adsorption
• Excellent filtration efficiency
• High production
• Sterilizable

Applications:

• Pharmaceutical Manufacturing
• Biotechnology
• Purified Water
• Laboratory Filtration
• Beverage Processing

5. PVDF Pleated Filter Cartridge

PVDF filter cartridges combine excellent chemical compatibility with outstanding oxidation resistance.

Features:

• Hydrophilic and hydrophobic options
• Wide pH compatibility
• High strength membrane
• Excellent thermal stability

Applications:

• Chemical Processing
• High Purity Water
• Acids & Alkalis
• Electronics
• Industrial Solvents

6. Vent Filter Cartridge

Vent Filter Cartridges are specially designed for sterile air venting and gas filtration in process vessels and storage tanks.

Features:

• High airflow capacity
• Bacteria retention
• Moisture resistance
• Sterilizable construction

Applications:

• Fermentation Tanks
• Pharmaceutical Plants
• Food Processing
• Chemical Storage Tanks
• Biotechnology

7. Glass Fiber Pleated Filter Cartridge

Glass Fiber Pleated Filter Cartridges provide excellent particle removal with high dirt-holding capacity and are widely used for fine filtration.

Features:

• High efficiency dust removal
• Large filtration surface
• Excellent flow characteristics
• Suitable for high contaminant loads

Applications:

• Paints & Coatings
• Chemicals
• Water Treatment
• Petrochemicals
• Industrial Process Fluids

Pleated Filter Cartridge Specifications

Where Are Pleated Filter Cartridges Used?

Pleated Filter Cartridges are designed to meet the filtration needs of industries where fluid purity, process efficiency, and equipment protection are important. Their high contaminant-holding capacity and compatibility with different filter media make them suitable for a wide range of applications.

Our Pleated Filter Cartridges are widely used in:

• Water Treatment: Filtration of raw water, process water, RO pre-filtration, and wastewater treatment.
• Refineries & Petrochemicals: Removal of solid contaminants from fuels, lubricants, solvents, and process fluids.
• Mining & Cement: Filtration of slurry, cooling water, hydraulic fluids, and dust suppression systems.
• Pulp & Paper: Process water filtration, coating chemicals, and pulp processing.
• Chemical & Dye Industries: Filtration of acids, alkalis, solvents, pigments, dyes, and specialty chemicals.
• Textile Industry: Filtration of dyes, sizing chemicals, processing water, and finishing solutions.
• Power Plants: Protection of turbines, boilers, cooling systems, and condensate water.
• Oil & Gas: Filtration of crude oil, natural gas, lubricants, condensate, and injection water.
• Edible Oil Processing: Removal of suspended impurities during refining and packaging.
• Automobile Manufacturing: Filtration of coolants, paints, coatings, lubricants, and hydraulic oils.
• Paints & Inks: Fine filtration for improved product consistency and finish.
• Bio-Pharma & Pharmaceuticals: Sterile filtration of purified water, process liquids, and gases.
• Ceramics & Fertilizers: Filtration of process liquids and chemical solutions.
• Sugar Industry: Clarification of juices, syrups, and process water.
• Defence & Marine: Filtration for hydraulic systems, fuel handling, cooling circuits, and industrial utilities.

Key Statement: Pleated Filter Cartridges improve process accuracy by reducing particle contamination, protecting equipment, and extending system life across industrial applications.

How Do You Choose the Right Pleated Filter Cartridge?

Selecting the relevant cartridge depends on the operating conditions and filtration requirements.

Consider the Following Factors:

• Required micron rating
• Flow rate and operating pressure
• Temperature of the process fluid
• Chemical compatibility
• Type of liquid or gas being filtered
• Cartridge length and end connection
• Replacement frequency
• Regulatory or industry-specific compliance

Choosing the correct filter media ensures ideal filtration performance and minimizes maintenance costs.

Why Choose Aris Filtration for Pleated Filter Cartridges?

Aris Filtration is a trusted manufacturer and exporter of industrial filtration solutions based in Ahmedabad, Gujarat, India. With expertise in designing high-performance filtration products, the company serves diverse industries with safe and application-specific solutions.

• ISO 9001:2015 Certified manufacturing processes
• Wide range of pleated filter media options
• Standard and customized cartridge designs
• Multiple micron ratings and configurations
• High-quality raw materials
• Consistent product performance
• Technical support for product selection
• Domestic and international supply capabilities

Whether you require filtration for water treatment, chemical processing, pharmaceuticals, oil & gas, or heavy industries, we provides solutions designed to deliver efficiency, strength, and dependable performance.

Trusted Quality for Industrial Filtration Solutions

A high-quality Pleated Filter Cartridge not only removes contaminants but also increases equipment protection, improves operational efficiency, and reduces maintenance frequency. Selecting the right cartridge is essential for maintaining consistent filtration performance in demanding industrial environments.

At Aris Filtration, we combine advanced manufacturing capabilities with industry expertise to deliver filtration solutions that meet the evolving needs of modern industries. From standard PP cartridges to specialized PTFE, PES, PVDF, Stainless Steel, Vent, and Glass Fiber Pleated Filter Cartridges, our products are engineered for reliable performance, long service life, and consistent filtration efficiency.

Looking for the right Pleated Filter Cartridge for your application? Contact us today to discuss your filtration requirements. Our technical team will help you select the most suitable cartridge based on your process conditions, ensuring efficient and cost-effective filtration for your operations.
