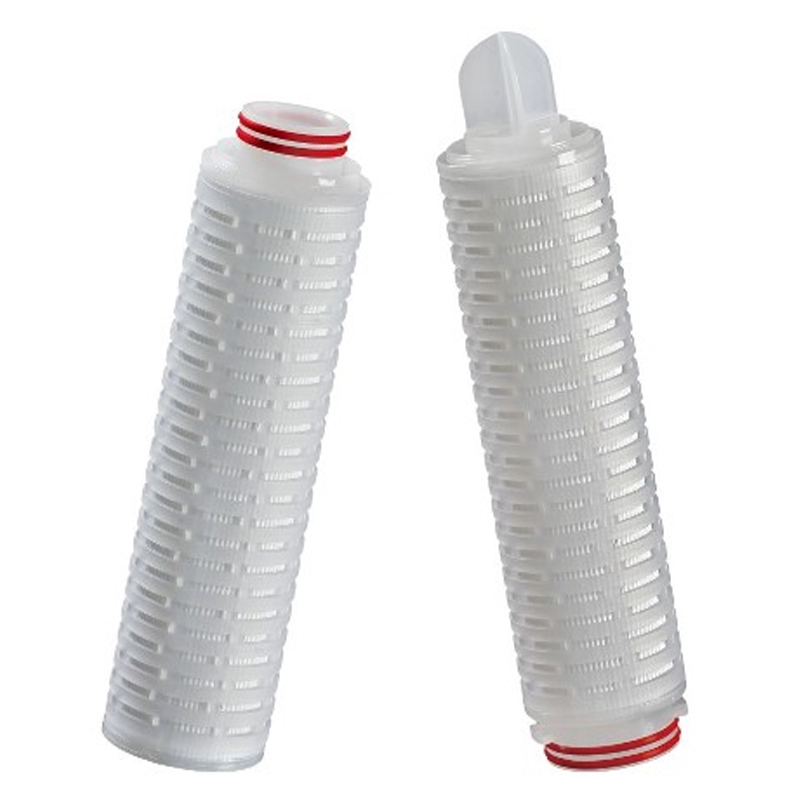

What is a PTFE Pleated Filter Cartridge?

A PTFE Pleated Filter Cartridge is a cylindrical filtration element manufactured with a polytetrafluoroethylene (PTFE) membrane arranged in pleats around a supporting core. PTFE is a fluoropolymer known for strong chemical resistance and low surface energy, making PTFE membrane filtration suitable for demanding industrial environments.

Depending on the process, PTFE cartridges may use hydrophobic or hydrophilic PTFE membranes. Hydrophobic PTFE is commonly selected for gas, air and vent filtration where moisture resistance is important, while hydrophilic PTFE is used for aqueous and other liquid applications where wetting and liquid flow are required.

Key definition: A PTFE membrane filter is a porous filtration element that separates particles or microorganisms from a process stream via controlled pore size.

Why choose a PTFE Pleated Filter Cartridge for industrial filtration?

PTFE is particularly valuable when conventional filtration media may not provide the required chemical compatibility. The pleated design increases the available filtration surface area within a compact cartridge, supporting efficient filtration and helping manage differential pressure.

Key advantages:

• Excellent chemical compatibility: PTFE is suitable for many aggressive chemicals and solvents, subject to process-specific compatibility evaluation.
• Fine filtration capability: PTFE membrane cartridges can be manufactured for critical fine-filtration requirements.
• Hydrophobic and hydrophilic options: The membrane type can be selected according to gas or liquid filtration requirements.
• Large effective filtration area: Pleating increases membrane area without proportionally increasing cartridge size.
• Low-pressure-drop potential: Appropriate membrane construction and flow conditions can support efficient fluid passage.
• High-purity filtration: PTFE membrane technology is used in applications requiring controlled contamination levels.
• Suitable for challenging environments: PTFE cartridges are commonly considered where chemical resistance and process reliability are important.

Key statement: PTFE Pleated Filter Cartridges are selected when fine filtration must be combined with strong chemical compatibility and dependable performance in demanding process conditions.

Where are PTFE Pleated Filter Cartridges used?

PTFE pleated cartridges can be considered across a wide range of industrial processes, but the correct membrane type, micron rating, construction and seal material should always be selected according to the actual process fluid and operating conditions.

What is the difference between hydrophobic and hydrophilic PTFE filters?

The primary difference is how the PTFE membrane interacts with water and other liquids.

1. Hydrophobic PTFE: Hydrophobic PTFE membranes repel water and are particularly useful for air, gas and vent filtration applications where moisture resistance is required. Commercial PTFE cartridges are used for compressed gases, tank vents and other gas-filtration duties.

2. Hydrophilic PTFE: Hydrophilic PTFE membranes are surface-modified to allow aqueous liquids to wet the membrane more readily, making them suitable for liquid filtration applications. Such membranes are used for demanding chemical and aqueous filtration processes.

The correct selection depends on the process fluid, temperature, pressure, chemical composition, required filtration rating and required flow rate.

What specifications should you check before selecting a PTFE filter cartridge?

Choosing a PTFE cartridge solely by micron rating can result in an unsuitable filtration solution. Buyers should evaluate the complete operating envelope.

Important selection parameters include:

• Filter media: PTFE membrane
• Membrane type: Hydrophobic or hydrophilic
• Filtration rating: Required micron rating
• Cartridge length: Based on housing and required filtration area
• End connection: Such as DOE, 222 or 226 configurations where applicable
• Seal/O-ring material: Selected according to chemical and temperature compatibility
• Operating temperature: Must remain within the cartridge's rated limits
• Differential pressure: Check forward and reverse pressure limits
• Flow rate: Determine required capacity and pressure drop
• Process fluid: Water, chemical, solvent, oil, gas or other medium
• Chemical compatibility: Confirm compatibility with the actual process chemistry
• Cleanliness requirements: Particularly important for pharmaceutical, food, speciality chemical and high-purity applications

For example, commercially available PTFE cartridges may vary substantially in construction. One Xylem FiberFlo PTFE cartridge specifies a 20-inch length, 0.2 µm rating, 2.7-inch diameter and 50 psi maximum differential pressure at 20°C, demonstrating why cartridge specifications must be evaluated as a complete system rather than by membrane material alone.

Important: The above figures are an industry example, not specifications of Aris Filtration. Actual Aris Filtration cartridge specifications should be confirmed against the required application.

How does a PTFE Pleated Filter Cartridge improve filtration performance?

A pleated membrane creates substantially more effective filtration surface within a compact cartridge than a simple flat membrane arrangement. This configuration can support higher throughput and contaminant holding while maintaining practical cartridge dimensions.

For critical applications, filter integrity is also important. Commercial PTFE membrane cartridges may undergo integrity tests such as bubble-point or diffusion-flow testing to verify membrane integrity.

Proprietary selection perspective: At Aris Filtration, PTFE cartridge selection should be approached as a process-matching exercise rather than a one-size-fits-all purchase; matching membrane type, filtration rating, construction, seal material, pressure, temperature and chemical compatibility to the customer's actual operating conditions.

Why choose Aris Filtration for PTFE filtration solutions?

Aris Filtration is an industrial filtration company based in Ahmedabad, Gujarat, India, offering solutions across macro- and microfiltration applications. The company's website states that its designs are developed through collaboration with international experts and in-house innovators and that it serves industrial filtration requirements across different sectors.

Aris Filtration's product portfolio includes filter cartridges, basket filter elements, SS wire mesh filter cartridges, sintered filter cartridges, liquid filter bags, capsule filters, dust collection cartridges, gas filter elements and other industrial filtration products.

The company identifies itself as an ISO 9001:2015 certified company and operates from Ahmedabad, Gujarat, with a factory facility listed on its official website.

For buyers looking for a PTFE Pleated Filter Cartridge manufacturer and exporter in Gujarat, India, Aris Filtration can evaluate the application requirements and recommend a suitable filtration configuration.
