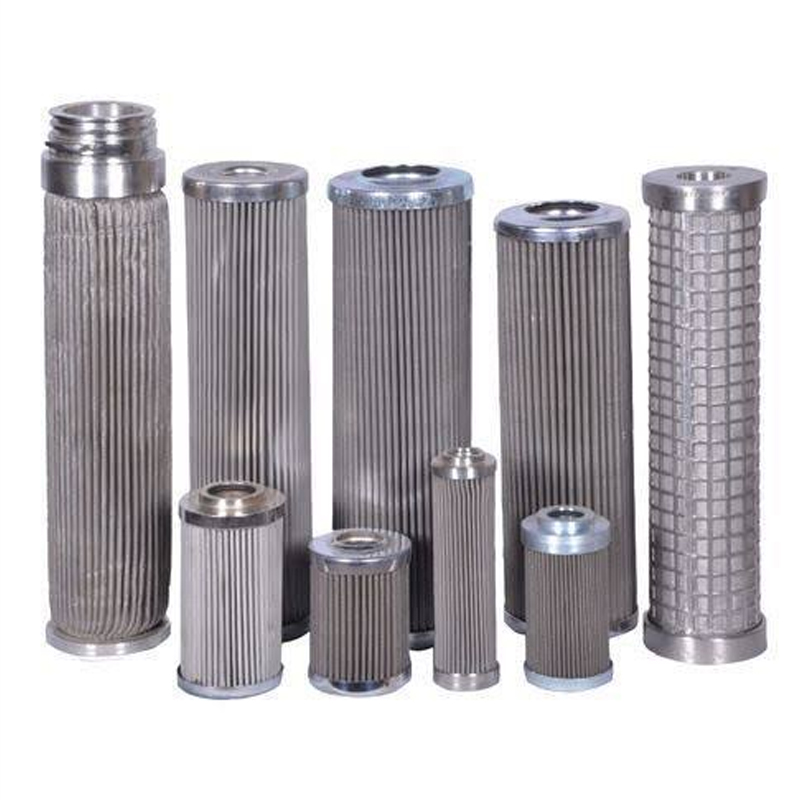

SS Pleated Filter Cartridge
An SS Pleated Filter Cartridge is a reusable, high-temperature filtration element manufactured from stainless steel filter media to remove fine contaminants from liquids, gases, steam, and chemicals. It offers excellent corrosion resistance, high dirt-holding capacity, higher flow rates, and long service life, making it ideal for demanding industrial filtration applications. Aris Filtration manufactures and exports industrial filtration products from Gujarat, India, serving demanding applications across water treatment, chemicals, pharmaceuticals, petrochemicals, oil & gas and other process industries.
What is an SS Pleated Filter Cartridge?
An SS Pleated Filter Cartridge (Stainless Steel Pleated Filter Cartridge) is a durable filtration element manufactured using pleated stainless steel mesh or sintered stainless steel media, supported by stainless steel inner and outer cores with strong end caps. It is specifically designed to filter liquids, gases, steam, oils, chemicals, and aggressive process fluids where conventional polymer cartridges cannot withstand extreme operating conditions.
Other disposable filter cartridges, stainless steel pleated cartridges, are washable, reusable, and capable of operating at high temperatures and differential pressures. Their strong construction makes them a preferred choice for continuous industrial filtration processes requiring long-term safety.
Key Statement: SS Pleated Filter Cartridges combine high filtration efficiency, mechanical strength, and reusability, making them a cost-effective solution for demanding industrial filtration systems.
Why Choose an SS Pleated Filter Cartridge?
Industrial processes often involve raised temperatures, corrosive chemicals, abrasive particles, and high operating pressures. SS Pleated Filter Cartridges are engineered to withstand these demanding conditions while maintaining consistent filtration performance.
Key Benefits
- High dirt holding capacity due to pleated construction
- Excellent corrosion resistance
- Suitable for high-temperature applications
- Washable and reusable multiple times
- Low pressure drop with high flow rates
- Long operational life
- Excellent mechanical strength
- Suitable for aggressive chemicals and solvents
- Environment-friendly alternative to disposable cartridges
- Reduced maintenance and replacement costs
How Does an SS Pleated Filter Cartridge Work?
An SS Pleated Filter Cartridge filters contaminants by allowing the process fluid to pass through multiple layers of stainless steel filtration media.
Working Process:
Step 1 – Contaminated fluid enters the filter housing: The liquid or gas enters under operating pressure.
Step 2 – Filtration begins: Particles larger than the selected micron rating are trapped on or within the stainless steel media.
Step 3 – Clean fluid exits: Only filtered liquid or gas passes through the cartridge into the downstream process.
Step 4 – Cartridge cleaning: Once the pressure differential increases, the cartridge can be cleaned using backflushing, ultrasonic cleaning, compressed air, steam, or compatible cleaning solutions and returned to service.
Key Statement: Other disposable filter elements, SS Pleated Filter Cartridges can be cleaned and reused repeatedly, significantly reducing operating costs.
What Makes Stainless Steel Pleated Filter Cartridges Different?
The primary advantage is the combination of stainless steel construction and pleated design.
1. Stainless Steel Construction
- High tensile strength
- Corrosion resistance
- Chemical compatibility
- High pressure resistance
- Long operating life
2. Pleated Design
The pleated media increases the effective filtration area by several times compared to cylindrical filter elements. This enables:
- Higher dirt holding capacity
- Better flow rates
- Longer filtration cycles
- Lower pressure drop
- Reduced cartridge replacement frequency
Technical Specifications
| Specification | Details |
|---|---|
| Filter Media | Stainless Steel Wire Mesh / Sintered Stainless Steel |
| Material Grade | SS304, SS316, SS316L |
| Micron Rating | 1–500 Microns |
| Cartridge Length | 5", 10", 20", 30", 40" & Custom Sizes |
| Diameter | Standard & Customized |
| Maximum Operating Temperature | Up to 300°C (application dependent) |
| Operating Pressure | High-pressure industrial applications |
| Cleaning Method | Backwash, Steam, Ultrasonic, Chemical Cleaning |
| Flow Direction | Inside-Out / Outside-In |
| Reusability | Yes |
Where Are SS Pleated Filter Cartridges Used?
SS Pleated Filter Cartridges are widely used wherever process safety, product purity, and long service life are essential.
- Water Treatment: Removes suspended solids, rust, scale, and particle contaminants from industrial water systems.
- Refineries: Filters fuels, lubricants, hydrocarbons, and refinery process fluids.
- Mining: Protects pumps and equipment by removing abrasive particles from slurry and process water.
- Pulp & Paper: Maintains clean process water and protects production equipment.
- Chemical Industry: Suitable for corrosive chemicals, acids, alkalis, and speciality process fluids.
- Textile Industry: Filters dyes, chemicals, finishing solutions, and process water.
- Power Plants: Used in cooling water systems, condensate filtration, and auxiliary process applications.
- Dye & Intermediates: Maintains product quality through precision particulate removal.
- Oil & Gas: Filters production fluids, hydraulic oils, lubricants, and compressed gases.
- Edible Oil Industry: Ensures cleaner oils during refining and production.
- Automobile Industry: Filters coolants, lubricants, paints, coatings, and process fluids.
- Petrochemical Industry: Provides accurate filtration for aggressive hydrocarbons and chemical processing.
- Paint & Ink Manufacturing: Removes contaminants before packaging to improve finish quality.
- Aeronautics: Supports high-purity filtration in accurate manufacturing applications.
- Cement Industry: Protects machinery by filtering process liquids and lubricants.
- Fertilizer Plants: Handles aggressive chemicals under demanding operating conditions.
- Bio-Pharma Industry: Supports sterile and critical process filtration where stainless steel compatibility is required.
- Ceramics Industry: Filters glazing materials, slurry, and process liquids.
- Sugar Industry: Removes impurities during sugar processing.
- Defence & Marine Industries: Suitable for demanding environments requiring corrosion-resistant filtration components.
What Micron Ratings Are Available?
SS Pleated Filter Cartridges are available in a wide range of filtration grades depending on the application.
Common micron ratings include: 1 Micron, 5 Micron, 10 Micron, 20 Micron, 40 Micron, 50 Micron, 75 Micron, 100 Micron, 200 Micron, 500 Micron.
The relevant micron rating depends on the desired filtration efficiency, flow rate, and contaminant size.
Why Choose Aris Filtration?
Aris Filtration is a trusted manufacturer and exporter of industrial filtration solutions in Ahmedabad, Gujarat, India, delivering safe products for liquid, air, gas, and process filtration applications. With expertise in engineering high-performance filtration systems, the company serves customers across domestic and international markets.
Choosing Aris Filtration means partnering with a company focused on quality manufacturing, customized filtration solutions, and dependable technical support.
Why Customers Prefer Aris Filtration?
- ISO 9001:2015 Certified Manufacturing
- Manufacturer & Exporter from Gujarat, India
- High-quality stainless steel filtration products
- Custom sizes and micron ratings available
- Strict quality inspection procedures
- Application-specific filtration solutions
- Competitive pricing
- Timely delivery
- Technical guidance for product selection
- Solutions for different industrial sectors
Frequently Asked Questions (FAQs)
(1)What is an SS Pleated Filter Cartridge used for?
It is used to remove particulate contaminants from liquids, gases, steam, chemicals, and oils in industrial filtration systems.
(2)Is an SS Pleated Filter Cartridge reusable?
Yes. It can be cleaned using backwashing, ultrasonic cleaning, steam, or suitable chemical cleaning methods and reused multiple times.
(3)Which stainless steel grades are available?
Common options include SS304, SS316, and SS316L based on application requirements.
(4)What micron ratings are available?
Typical ratings range from 1 to 500 microns.
(5)Can SS Pleated Filter Cartridges withstand high temperatures?
Yes. Stainless steel construction allows operation at significantly higher temperatures than polymer-based filter cartridges.
(6)Which industries use these cartridges?
Water treatment, refineries, mining, pulp & paper, chemicals, textiles, power plants, oil & gas, edible oils, petrochemicals, paints, inks, bio-pharma, defence, marine, ceramics, cement, fertilizers, sugar, and automotive industries.
(7)How often should the cartridge be replaced?
Replacement depends on operating conditions. Since these cartridges are reusable, they are typically replaced only after repeated cleaning cycles or when physical damage occurs.
(8)Can Aris Filtration provide customized cartridges?
Yes. Aris Filtration offers customized dimensions, micron ratings, and configurations to suit specific industrial filtration requirements.
